Ladder Access Bracket

ANKAme
$195.00 $156.00
You save $39.00
Current Stock:
SKU:
AM-LAB
Availability:
This product usually ships within 1 business day.
Weight:
1.00 KGS

TEMPORARY/PERMANENT LADDER ACCESS BRACKET

Ladder Access Bracket complies with AS/NZS 1657:2018. PATENT PENDING. REGISTERED DESIGN.

The ANKAme Ladder Access Bracket is a fully compliant tool, designed to ensure your safety whilst working at heights. The bracket can be surface mounted to any metal, concrete or masonry roofing or walls, temporarily or permanently.

KEY FEATURES

  • Multifunctional / Multidirectional use
  • Adapts to all common metal roof sheet profiles.
  • Aligns to roof screw patterns & profiles.
  • Compatible with all roofing material profiles and types.
  • Compatible with direct contact to other common roof and wall materials such as steel, masonry structures and concrete. (Not suitable for contact with stainless steel, copper, or lead).
  • Fits up and over most common gutter profiles.
  • Lightweight (1 kg)
  • Can be installed on horizontal edge of roof or angled side of roof.
  • Complies with: AS/NZS 1657:2018

To be installed and used by competent persons only.

Constructed from 5mm high-grade, durable aluminium plate, with a linished finish.

Comes with:

1 x ladder access bracket, 1 x installation and user guide, 4 x permanent fixings (M12 X 25MM HEX HEAD SCREWS) ONLY

SELECTION, USE AND MAINTENANCE

Ladder should be tied to bracket during use. Do not install bracket in a corrosive environment. Do not use chemicals to clean. Wipe with a clean, damp cloth regularly. Access bracket should be inspected every 12 months.

QUICK INSTALLATION GUIDE

PERMANENT fix onto METAL

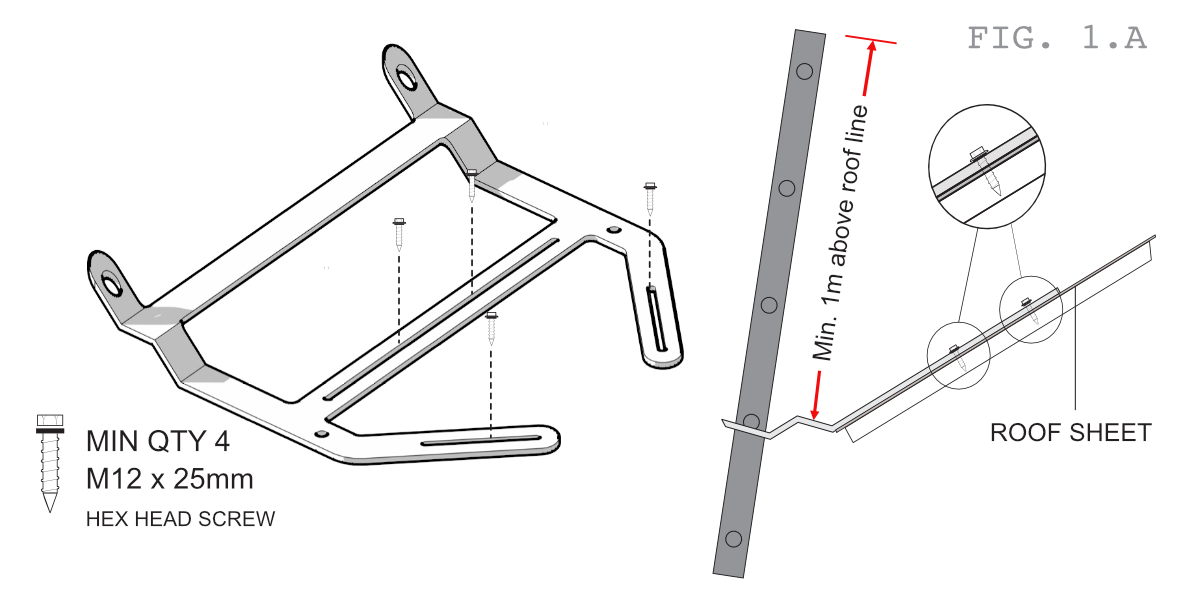

For roof or wall mounting, a minimum of 4 12x25mm roof screws with neoprene washer must be used for the permanent fix installation onto metal material, as shown in FIG 1.A

Comes with permanent fixings.

Fig 1A – Metal roof / wall – Permanent fix application






TEMPORARY fix onto METAL

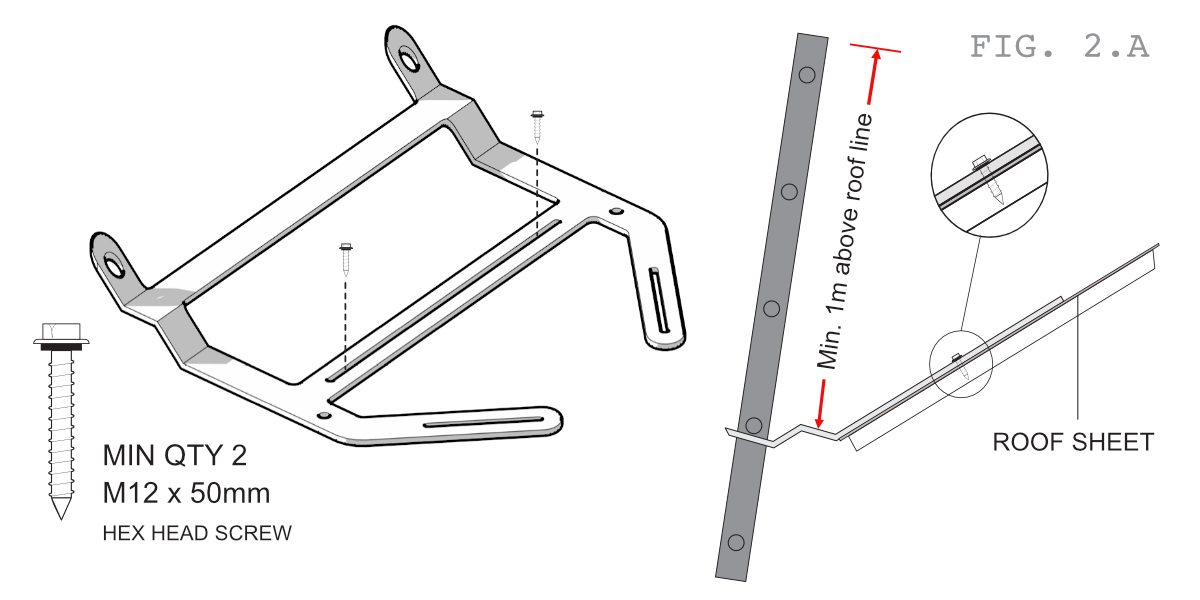

For roof or wall mounting, a minimum of 2 12x50mm roof screws with neoprene washer are used for the temporary fix installation onto metal roofs or walls as shown in FIG 2.A.

All screws must penetrate into timber or steel structure below roof sheeting, as shown. Use fixings from existing roof for temporary fixing of ladder access bracket. Temporary fix application is not suitable for Permanent fix application.

Fig 2A – Metal roof / wall – Temporary fix application


TEMPORARY or PERMANENT fix onto CONCRETE or MASONRY

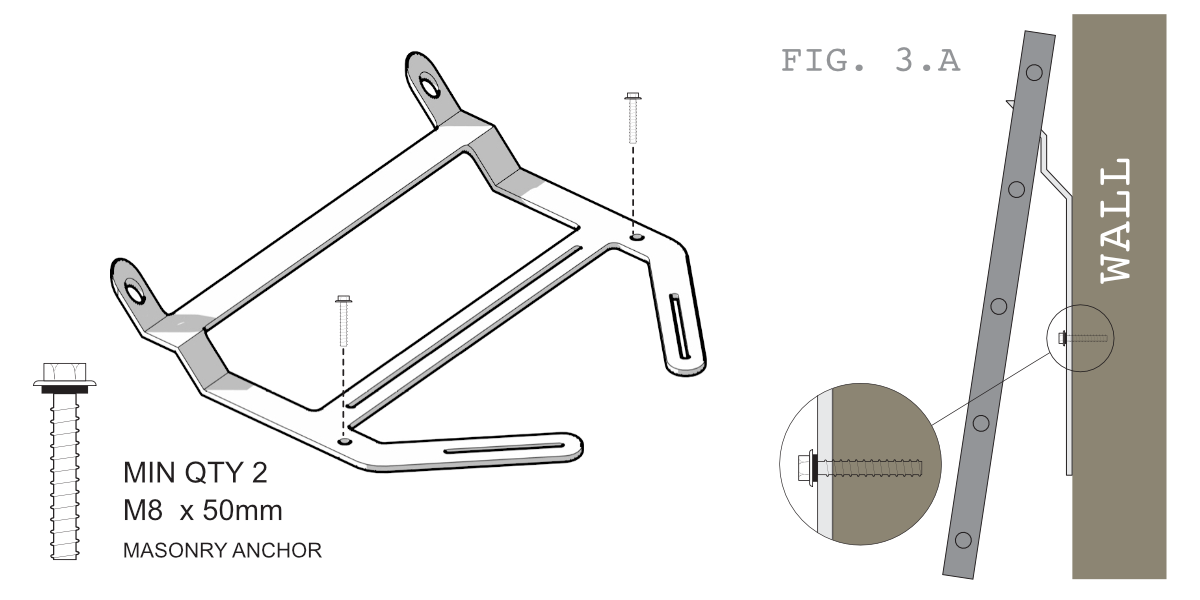

For wall mounting, a minimum of 2 8x50mm anchor bolts are used for the permanent fix installation onto concrete roofs or walls, as shown as shown in FIG 3.A

Fig 3A – Concrete or Masonry / wall – Permanent or Temporary fix application


DOWNLOADS

pdf-download.jpgInstallation and User Guide

pdf-download.jpgWarning Access Plate

DISCLAIMER - INSTALLATION OF SAFETY PRODUCTS

The Manufacturer / Distributor cannot be held responsible for any Product that is not installed correctly or is misused. Persons installing these Products must be competent. All persons installing Height Safety Products must know the ‘Working At Heights’ Regulations, have had Height Safety Training & be competent in all the relevant Australian Standards applicable to the work you are doing. Any installation diagrams are the manufacturers recommended methods and must be adhered to. The Manufacturer / Distributor cannot be held responsible for incorrect installation documentation or procedures. The Distributor will endeavour to help and give guidance where necessary but cannot be held responsible for any ‘misinterpretations’ or ’incorrect’ advice.
